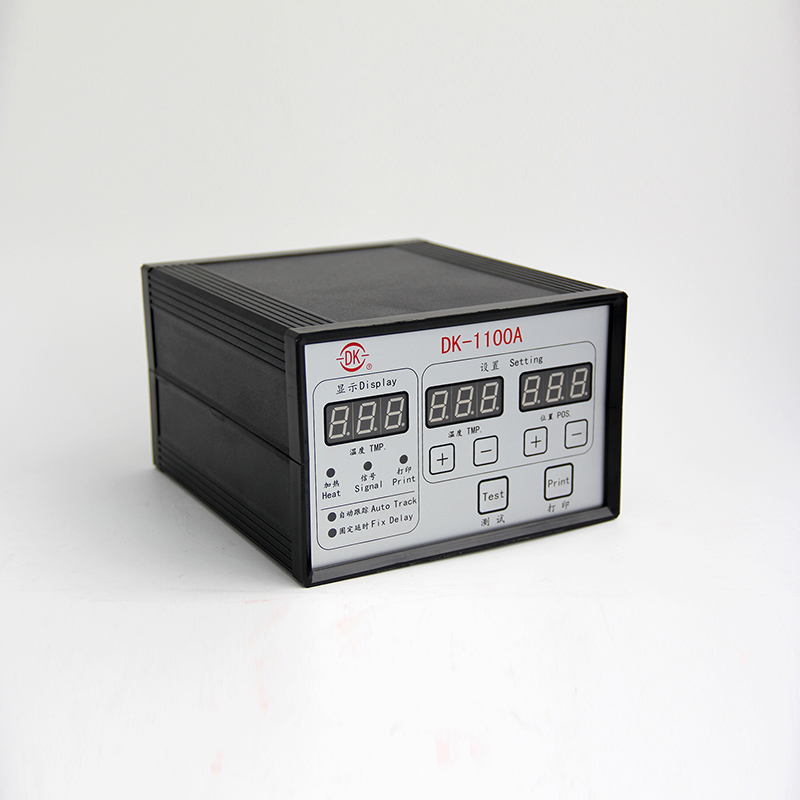

The DIKAI DK-1100A Ink Roll Coder is an electronic continuous motion coder designed for integration with packing machines. This high-performance printer features:
| Print Area | Axial=40mm; Radial=45.5mm |
|---|---|
| Pouch Length | ≥38mm (4-up printer) ≥75mm (2-up printer) |
| Print Lines | T-type (Axial) up to 13 lines, max 20 characters/line R-type (Radial) up to 10 lines, max 13 characters/line |
| Font Size | T-type 1.5mm, 2.0mm, 2.5mm, 3.0mm*3.5mm R-type 3.5mm*3.5mm, 4.5mm, 5.5mm |
| Print Speed | Up to 300 prints/minute |
| Surface Speed | Up to 35 meters/minute |
| Weight | Print Head 2.0kg Control box 1.0kg |
| Dimensions | Print Head 120mm*100mm*170mm (L*W*H) Control Box 180mm*180mm*102mm (L*W*H) |
| Ink Roll Required | ¢36*40mm |
| Electrical | AC100-230V, 50/60Hz |
| Power | 130W, 2A Fuse |
| Temperature Range | 4°C-40°C |
The carton package is suitable for sea, air, and fast courier shipping.
Our company has dedicated 25 years to developing, manufacturing, and selling quality coding machines and consumables. We are committed to satisfying every customer's unique needs in coding and marking applications.
Standard lead time is 1-2 weeks after order confirmation. For stocked goods, delivery can be made within 2 working days.
Standard warranty is 12 months after leaving Dikai warehouse.
For countries with distributors, we rely on our distributor network for after-sales services. Dikai also provides online technical support and continuously upgraded video support materials.
